Chimney Rock, NC -- October 2002
My Retro Console v1.00
December 2002
| This is my version 1.00 of a "retro" console/drive tunnel mod. It was in very large part inspired by the efforts of Gene-M (Gene's Stunning "retro" console), and implemented using the sheet aluminum approach pioneered by Zonker92 (Zonker's also Excellent console mod) | |||
|
|
|
|
|

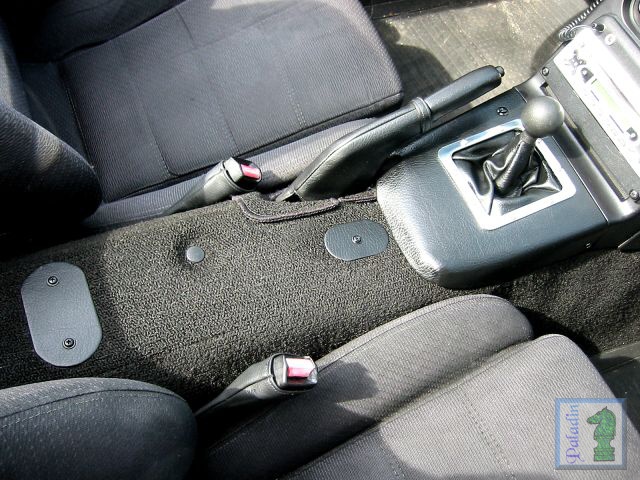

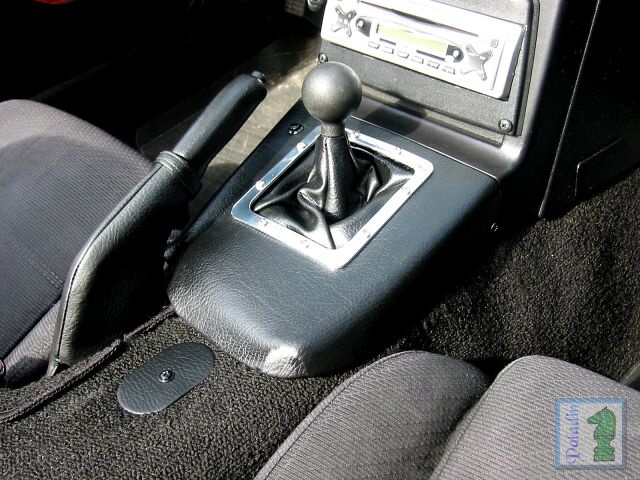

| The shifter cover/surround was
fabricated from .040" aluminum sheet scrounged from a nearby roofing
job. A cardboard template was first developed and then the metal was
shaped on-the-fly (a snip here, a tuck there). It is covered with PVC
"leatherette" using 3M's headliner contact cement. The cover
plates for the OEM console's mounting points were similarly constructed of

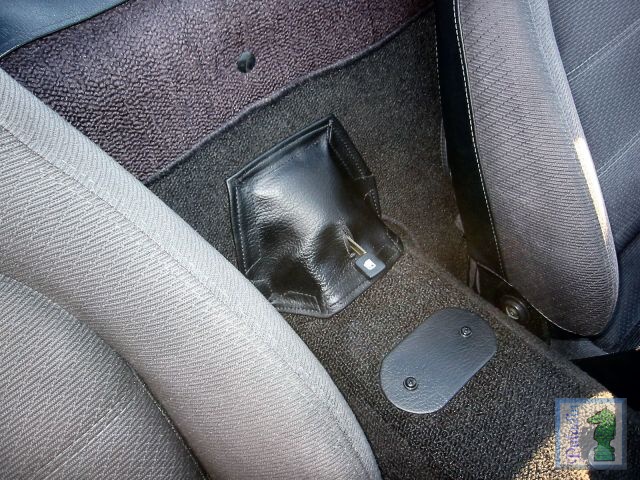

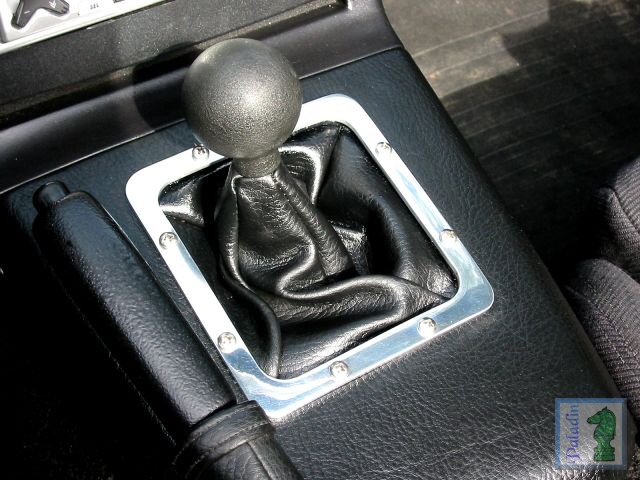

vinyl covered sheet aluminum. The shifter "ring" was made from 1/8" aluminum sheet, hand cut, shaped, and polished. The cover for the fuel filler release is also of vinyl leatherette, fastened to the carpet with Velcro (hook-side). The small push-button to the left of the shifter is wired to my garage door opener. It's a low power (one CR 2032 for power!), high-frequency unit so I had to mount it in a small leather(ette) pouch on the A-post to have it function with any respectable range. This is all the result of two Saturdays' efforts, and still has a few flaws in finish and alignment--next I plan to redo the shifter console. |
|||
